Sciaire Bipolar Air Ionization Technology
Sciaire Pro H100/H110 Air Ion Generator
Request Quote or Call
Monday—Friday: 9am—6pm CST

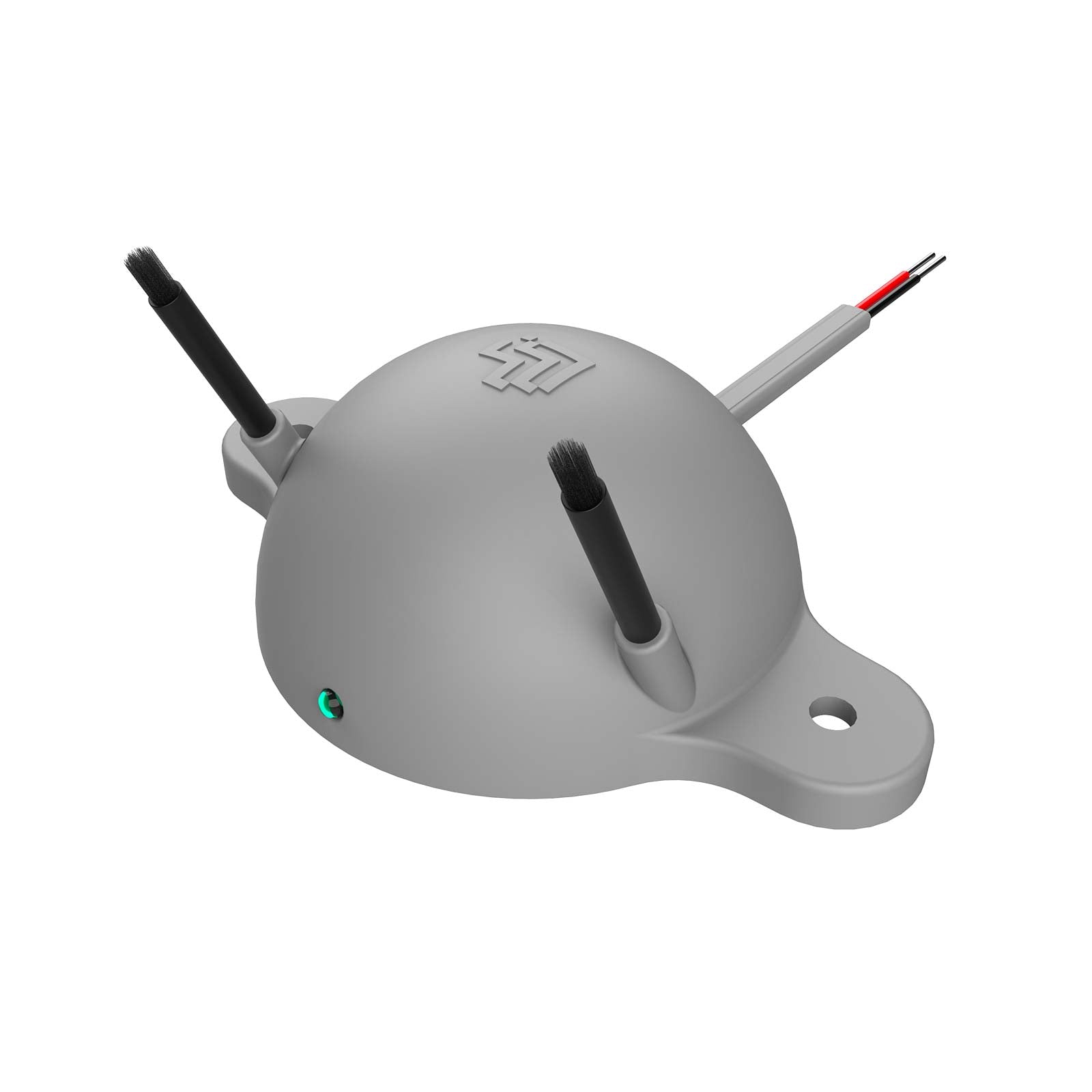

About Sciaire Pro H100/H110
An HVAC carbon fiber brush output ionizer that produces positive and negative ions. This ionization equipment is self-contained in a potted enclosure which has molded flanges with mounting holes.
Active Air Purification
This device is a carbon fiber brush output ionizer that introduces positive and negative ions into an airflow system.

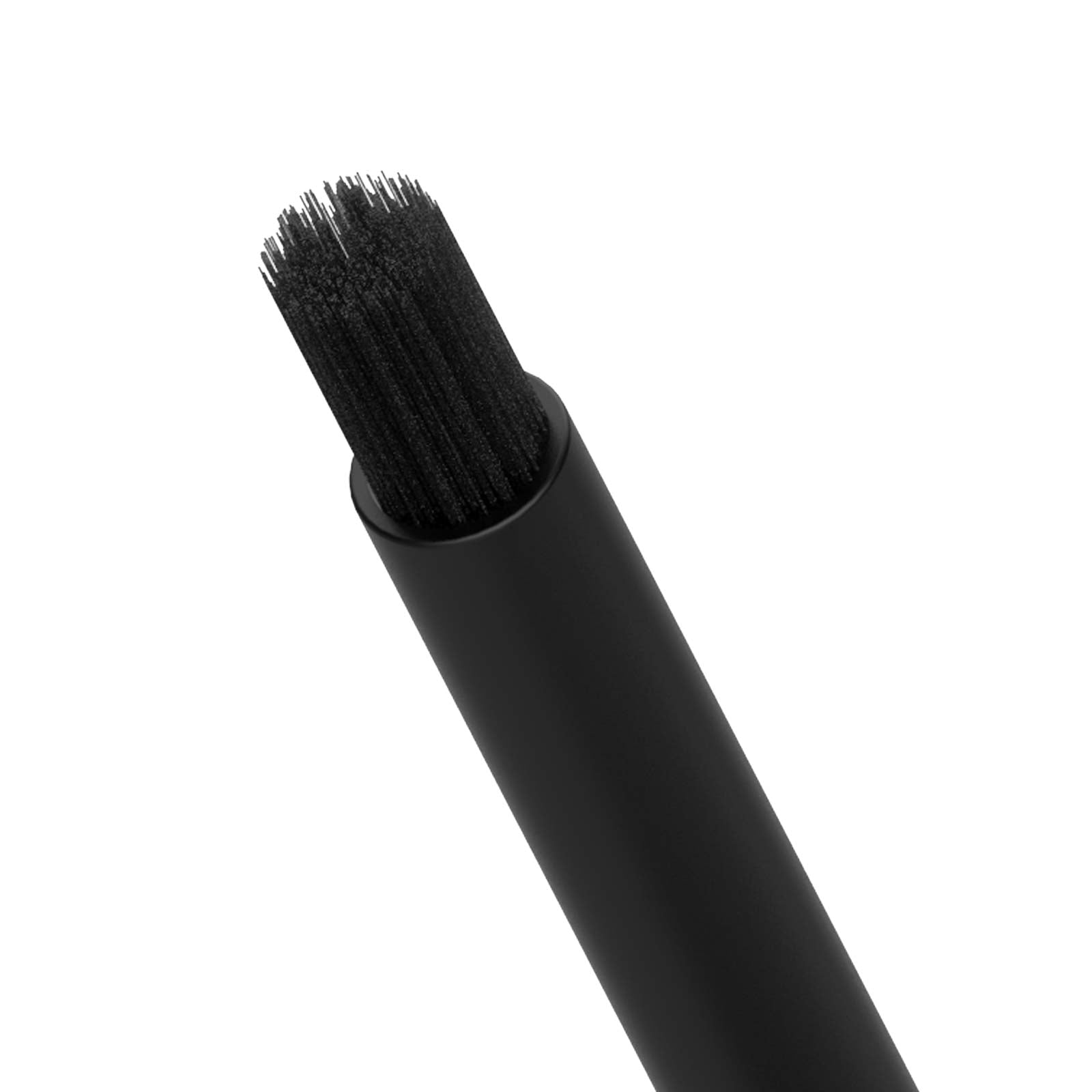

Angle of Carbon Brushes
Angled carbon brush emitters maximizes ion production.
Domed Housing
Allows for better aerodynamics across the unit which allows for a higher level of ions to be delivered.

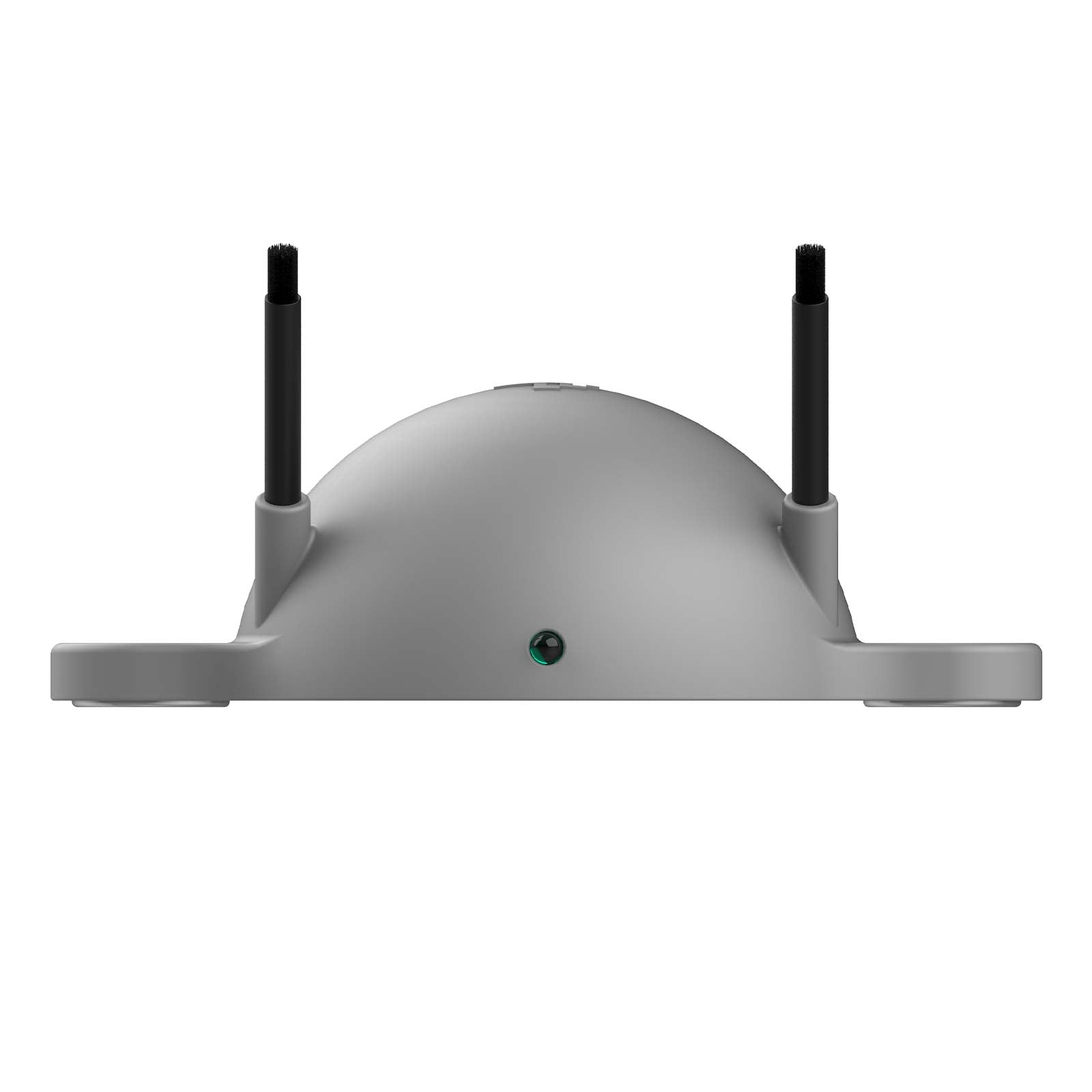

Indicator Light
Green light shows the ions are being produced.

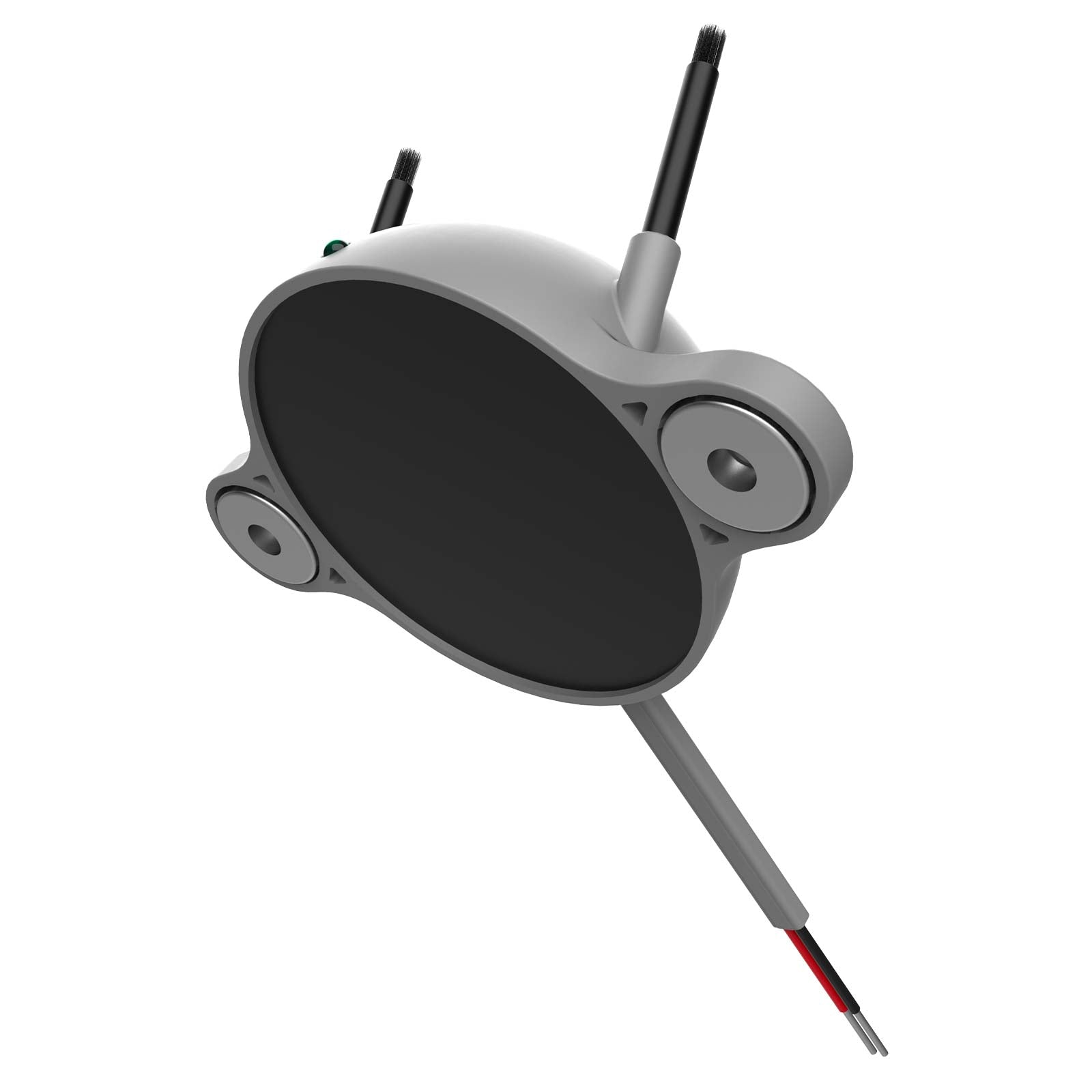

Magnets
Easy installation and placement.
Technical Specifications
Highly versitile. May be installed in an air handling unit, fan coil unit, PTAC, heat pump and even a ductless split system.
H100-24GR | H100-240GR
12-24V DC/AC (H100-24GR) 50/60 Hz
120-240V AC (H110-240GR) 50/60 Hz
<1 Watt
60 mA (H100-24GR) | 30 mA (H100-240GR)
500 mA
-4°F to 140°F (-20°C to 60°C)
Gray | Polybutylene Terephthalate and Fiberglass
3.70 x 2.36 x 1.22 in (94 x 60 x 31 mm)
0.227 lbs (121g)
Up to 2,400 CFM (6 tons)
Blower mount using strong magnets and/or screws
Fuse for surge protection
Tinned wiring harness
Education, health care, animals, self care, shopping, activities, housing
UL2043, UL2998, UL867, CARB, EPA Est. No. 99117-CHN-1, CSA Std. C22.2 No. 187
Installation of Sciaire Pro H100
What is PlasmaShield Technology?
PlasmaShield Technology creates positive and negative ions that disburse into the air to eliminate volatile organic compounds, odors, and allergy-causing dander. The bipolar ions safely break apart odors, allergens, chemical vapors, and other pollutants at a molecular level, without causing harmful ozone.
Do Sciaire products emit ozone?
No, our Sciaire products are CARB certified and do not exceed ozone emission limits.
Is there any UV light in Sciaire products?
No, Sciaire products do not have UV lights.
